A simple Windows RSS store viewer

Download the C# .NET 1.x source code and demo (239 kb)(big size due to interop dlls).

Who, what, when, where

Disclaimer : this article and source code are not endorsed by Microsoft. Use it at your own risks. You can freely reuse this code.

Microsoft recently (as of February 5, 2006) shipped a preview of their new Internet Explorer release, along with an integrated RSS experience. This includes a RSS store mechanism combined with a documented COM interface.

While Internet Explorer 7 is the default client for this RSS store, I thought it would be interesting to get behind the API and understand how the RSS store works and how to create your own Microsoft RSS store client without using their API. The example you can download is the result of the experiments. It's C# .NET code.

You can run this example even without Internet Explorer 7 installed. I have provided a "just in case" folder in the zip file where you'll find a snapshot of my RSS store. Simply copy the content of this folder into the RSS store location on your hard drive (see below).

RSS store inside out

The RSS store is installed at the same time than Internet Explorer 7 preview bits on XP SP2 machines. No configuration is required. The RSS store has a synchronization engine (the equivalent of an unix daemon) which I'll talk about later in this article.

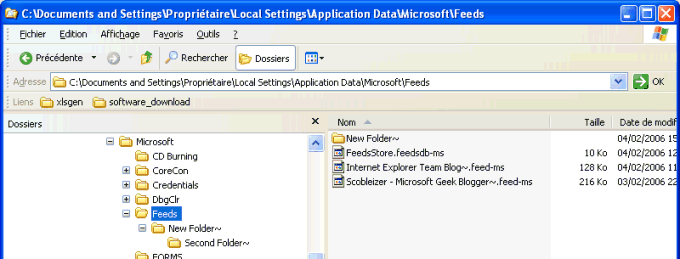

The RSS store is a set of OLE documents (a two-decade old technology, which is not cross-platform), and is installed on a per account basis. If your Windows account name is <user>, then the RSS store is stored in C:\Document and settings\<user>\Local Settings\Application Data\Microsoft\Feeds\FeedsStore.feedsdb-ms.

Unlike the .feedsdb-ms file extension suggests, it can be opened using a standard OLE document viewer, such as the one which comes with Visual Studio (Tools / DocFile viewer). If you have no Visual Studio install available, you can download an alternative OLE client here.

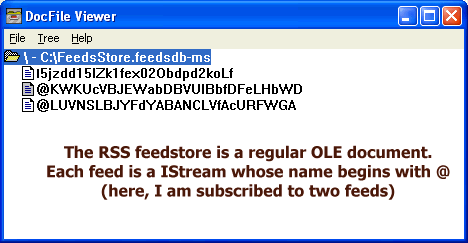

The OLE document has a number of streams. The first stores general purpose settings, while all streams whose name begins with @ are actual feed subscriptions. In the screen capture above, I'm subscribed to two feeds. The stream names themselves are irrelevant.

Opening up those streams brings a simple XML schema which governs how the feed will be presented and how it synchs. Namely some of the most interesting properties include :

• <FeedDataCache Path="...">, stores the name and path of the corresponding feed
• <uiInterval>, client refresh interval
• <fDownloaded>, whether attached enclosures have been downloaded
• <Counts>, how many items are stored at this point

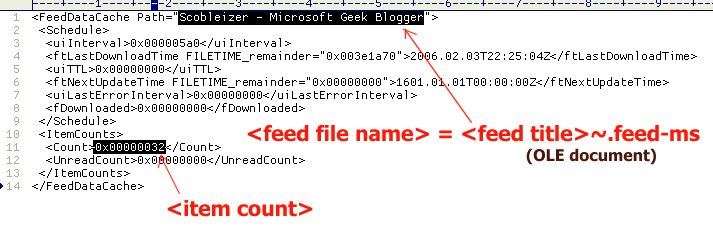

Here is a screen capture of one of the feed descriptors, grabbed from stream @KWKUcVBJEWabDBVUIBbfDFeLHbWD :

The Path attribute above is critical : it both contains the name of the feed as it appears in the IE7 favorite side bar, and the fully qualified path which describes the folders in which the feed file actually is. Note that the folders are used to build the IE7 favorite sidebar treeview, and are also actual physical subfolders on the hard drive.

To access the feed, one needs to take the RSS store path, add the content of <Path> after encoding, and add ~.feed-ms to it. The resulting file is another OLE document which can in turn be opened as well. Here is a screen capture of Scobleizer - Microsoft Geek Blogger~.feed-ms opened in the OLE client :

There are a number of streams, most notably :

• Streams with a numeric name, 0, 1, ..., n - 1, are non other than feed item snapshots
• A stream named "Rss". It stores the header of the RSS/Atom feed. This can be useful to grab the encoding charset for instance, as well as some other metadata.
• A stream named "Item data". This stream contains a list of settings for each feed item, most notably whether they are "marked as read".
• A stream with a mangled named. It stores the actual feed url on the internet.

A good citizen feed client should read all of the streams and combine the metadata as appropriate. In sequence, one would read the mangled named stream in order to get the actual url, then the Rss stream in order to get important header information that will be used to render the feed items, then the Item data stream which lists all feed items along with their settings. Followed of course by all actual streams storing the feed items.

The example I provide for download currently takes a shortcut to this sequence and simply grabs all streams storing the feed items in the order they are read.

Finally, we need to take a look at what the feed item streams look like. Here is a snapshot of stream 0 :

Note that the feed item is contained within a <ItemData> element which is added by the RSS store. Both RSS schema version x.y and Atom schema version x.y feeds follow those rules.

In practice, unless you are interested in making sense out of all the XML elements, it really does not matter much. After all, RSS and Atom schemas are close enough to let one build a client without much time to spend into it. What my example code does is use the .NET XML subscriber-like parser to grab the following elements :

• <title>, the feed item title itself
• <pubDate>, optional, the publication date
• <link>, optional, the link to the actual online blog post
• <description> the feed item body

And that's pretty much it.

Additional information for path and name encoding. When you try to access a feed's file such as Scobleizer - Microsoft Geek Blogger~.feed-ms from the <Path>, you need to pay special attention to some encodings used to map paths and names to actual hard drive files (I don't know why Microsoft invented another layer of proprietary encoding here, while the standard url encoding scheme would have worked just fine) :

• any . (dot) character in <Path> should be replaced by ~d
• any : (colon) character in <Path> should be replaced by ~c
• any \ (backslash) character in <Path> should be replaced by ~\
• I am pretty sure there are other replacements, but other characters like apostrophes and commas are not replaced. Let me know if you find a combination not documented here yet.

Building a client

The example is a C# project with the following files :

• FeedViewer.cs, the UI on top of the feed store retrieval code
• FeedStore.cs, the code used to open the main OLE document, and expose feeds to a client
• Feed.cs, the code used to represent a feed itself
• FeedItem.cs, the code used to represent a feed item itself
• NativeCalls.cs, the IStorage/IStream calls used to read OLE documents

If you'd like to reuse this code, then you really can take the non-UI files and use them as a "RSS store API". Alternatively, you may want to use the official Microsoft RSS store API though.

Reading an OLE document is essentially not .NET friendly. An OLE document uses COM IStorage/IStream interfaces to expose a hierarchy of fictitious sub-folders and sub-files in a given file. Microsoft uses an OLE document for the feed store itself, and then a separate OLE document for all feeds. All combined is what they call the RSS store, but it's physically a bunch of folders and OLE files in it. In order to read, an OLE document, one must use the IStorage/IStream interfaces implemented in OLE32.dll or get away with it with Wine or OLE api replacements (Apache POI for Java, ...). The IStorage interface is not publicly re-exposed in the .NET framework so this must be done. To make things easier, the www.pinvoke.net website has done this work for us already. The IStream interface is already re-exposed though, and its name is UCOMIStream. Since we'll execute native code, the permission for doing this must be granted, hence the permission.Demand() call made in the initialization phase.

When reading the main feed store file, the streams are enumerated then the actual parsing work is delegated to the appropriate objects. The Feed class is the only class that knows how to deal with a feed stream (whose name begins wih @). By analogy, the FeedItem class is the only class that knows how to deal with feed item streams (streams with a numeric name).

Reading those OLE documents allows to populate collections of Feed and FeedItem objects which are exposed by the FeedStore class by index or name.

On the UI side of things, the folders used to build a treeview on the left hand side are stored in the Feed class. A simple String split lets us build the tree recursively. We put a wait cursor and block the treeview WIN32 window update to avoid any flicker. The treeview has a context menu with a Refresh option, which essentially wipes the collection out and does the reading work again. In other words, when you click Refresh, it's not doing an online Refresh, it's grabbing what's available from the RSS store, and it's up to the IE7 synchronization engine to update the RSS store, separately.

The RSS store is read when the UI is initialized. At this point, we can build the tree of feeds, but we haven't read the feeds content yet. This happens on-demand (only if required) whenever the user clicks a treeview item. And the associated OLE document to the feed is read, feed items are read and stored in memory.

The listview on the right hand side is populated using the feed item titles and publication dates. It's sortable to accomodate typical needs. When right-clicking a feed item, you can open the actual online link associated to the feed item. This works whenever applicable. In fact, a feed item is apparently not required to have a <link> element, although I guess a fallback scenario would be to grab the <guid> which apparently is also optional.

Once a feed item is clicked, we grab the accompanying body (<description>) element, then enclose it in a rudimentary html mark-up tag so that the web browser control understand it's html. We create a temporary filename, store the content in it, and then ask the web browser control to show it by issuing a Navigate call. All of this is a matter of a few lines of code.

It's very clear from the above that what the example code does is read the feeds. It never edit them, delete them, or add a new feed. That'd be a nice addition to it, however. Feel free to contribute!

Using the API

Accessing feed names

  FeedStore fs = new FeedStore();

  fs.Refresh();

  foreach(Feed f in fs.Feeds())
  {
    string [] pathsplit = f.Path.Split(new Char [] {'\\'});

    String name = pathsplit[pathsplit.Length - 1];
  }

Accessing a feed's content

  Feed f = fs[i];

  f.Open(fs.FeedStorePath);

  String path = f.Path;
  int nbitems = f.Items.Count;

  foreach (FeedItem fi in f.Items)
  {
     ...
  }

Accessing a feed item

  Feed f = fs[i];

  f.Open(fs.FeedStorePath);

  foreach (FeedItem fi in f.Items)
  {
     //fi.Name
     //fi.Date
     //fi.Link
     //fi.Body
  }

Why use the API

Currently this API is full .NET (unlike the official API which uses tlbimp to interop the COM-based API) and has clear shortcomings in the sense that it only reads the RSS store. That said, it will reflect any update from the RSS store, which is after all what a generic client would expect.

Nice additions to it would be the ability to add/edit/delete feeds. Again, this would work through the IStorage/IStream mechanism.

The RSS store synchronization engine

By default, feeds in the RSS store are synched automatically using a scheduled mechanism. There is a general option available from the IE7 toolbar which lets you uncheck this option. Against all odds, this works even without IE7 started. Magic!

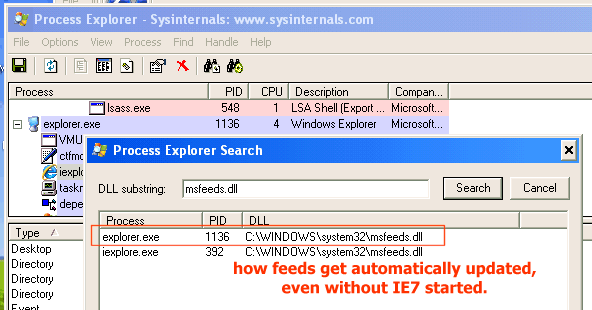

Actually the engine is a COM object called msfeeds.dll which is registered so as to be both a Windows Explorer add-on and a IE7 add-on. SysInternals process explorer reveals it :

Since Windows Explorer always run on the desktop, this provides both a general purpose synchronization mechanism, as well as an unexpected conduit.

Why OLE?

One can only wonder why they have chosen OLE as their store foundation, especially when there are separate OLE documents being created for every single feed. Aside that general performance of your system may be greatly reduced during a synchronization as a side effect of automatic anti-virus sniffing anytime a file gets touched, one wonders why a single OLE document is not used (after all, the hierarchy inside can store all feeds and all feed items in the same place). Or why they are not using ZIP now that it's supposed to be the solution to all file format problems (pun intended). How well this is going to work across platforms (remote sync) remains to be seen.
